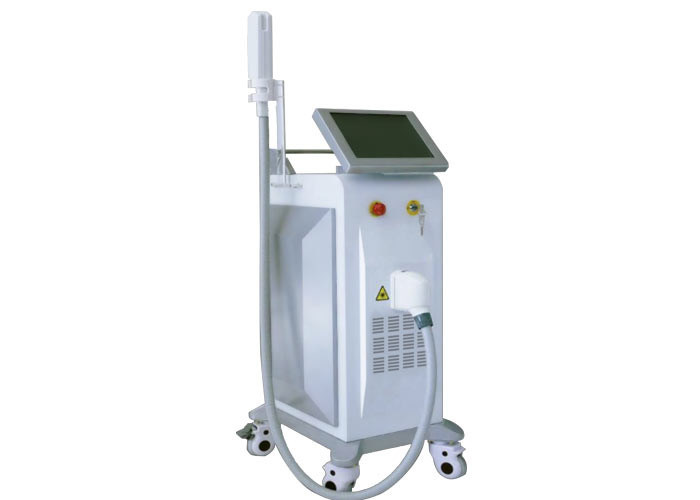

Professional Diode Laser Hair Removal /808nm fiber coupled laser diodes for Permanent Hair Killing Hair Reduction

OVERVIEW

FCD(Fiber Coupled Diode Laser)technology to

aesthetic laser machine is a big breakthrough in medical aesthetic field. Due to the new technology, Fiber laser-I has a standing out working performance and perfect

depilation effect. Built with high energy, efficacy and comfort as the foundation, Fiber laser-I is best ROI choice for a dependable laser hair removal system.

What is Fiber Coupled Diode (FCD) technology?
The light generated by multiple diode laser are coupled into a single-core multimode fiber by micro lens array, in order to deliver light to the target place. This innovative

design assures uniform energy distribution, low damage rate, long lifespan and easy maintenance of the diode laser.

What is “Jet Smooth”?
A high repetition rate of short pulses are delivered deep into the dermis, achieving high average power and therapeutically effective heat build-up, with virtually no pain.

The "Jet Smooth" technique of moving the handpiece repeatedly over the treatment area ensures full coverage while powerful cooling system cools the skin surface to

prevent superficial burns.

Why Choose 810nm Wavelength?
810nm diode laser is the gold standard for hair removal. Light at the wavelength of 810nm is absorbed by melanin in folicle and greatly reduce the absorbtion by water

and haematoglobin. Treatment is safe for epidermis.

Fiber Coupled Diode Laser for Depilation

FCD technology for depilation ensures the machine competent for high strength and harsh working environment. FCD laser

could work under high temperature (45℃) and high moisture, which prolongs the lifespan of laser generator significantly.

Touch cooling system
Sapphire touch cooling assures reliable and constant cooling result for skin surface with maximum comfort and safety. Maximum energy target on follicle with less

consumed by tissue. The temperature of 0℃ to 5℃ further increase treatment comfort.

Two years laser generator warranty
We offer a laser generator warranty for 20 million shots or 2 years, whichever comes first. The laser generator goes with super long service life, up to 50 million shots.

No consumables. High return on investment.

Ultra light handpiece, high efficient operation
The weight of handpiece is greatly reduced compared to the vertical laser stack handpiece. Operators feel more convenient during long time operation. 12x12mm spot

size is accessible to fast and efficient operation on big area. The released energy makes excellent results on every inch of skin where hair removal is required.

Uniform Energy Distribution
Fiber coupled diode laser is designed with a uniform energy distribution at a small divergence angle for more gentle and effective depilation.

Easy maintenance
With Φ 8mm macro channel designing, Fiber laser-I no longer requires to replace filters or deionizer. With a bigger volume of laser generator, the decreased heat flux

effectively prevents the thermal damage to laser generator.
Meanwhile, Fiber laser-I is driven by high voltage but low current, which improves the power efficiency and reduce over-heating.

3 Designs for Option

Fiber-I

Fiber-II

Fiber-III
